Plate Loading Test Set With Digital
Plate Loading Test Set With Digital Dial Gauges and Digital Readout Unit, 200 kN
Ref. Standards : ASTM D1194 , D1195, D1196; BS 1377:9
EKE 1200:
This test method is used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTM D1194). It is also used for load test of soil and flexible pavement components for use in evaluation and design of airport and highway pavements.

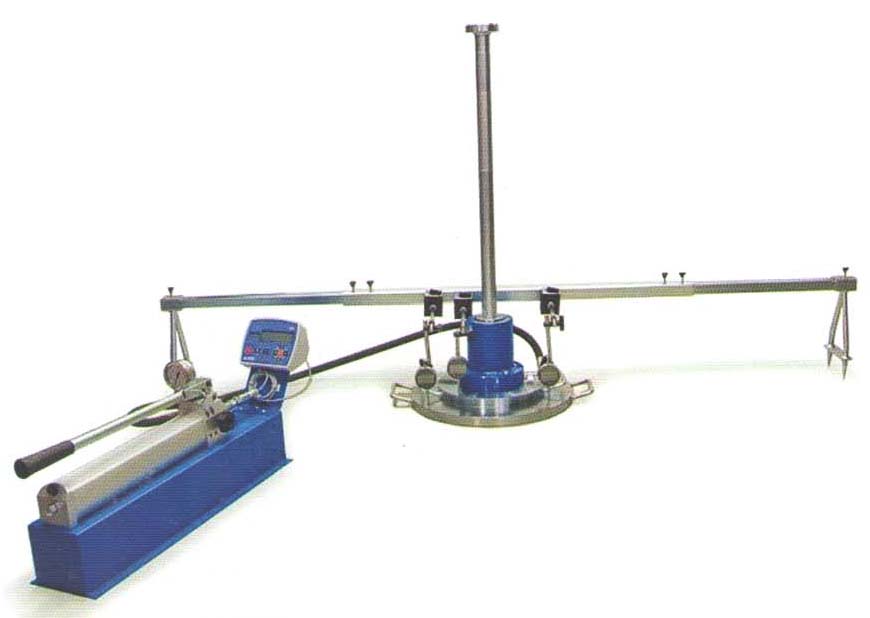

EKE 1200: Plate Loading Test Set consists of a 200 kN capacity piston assembly and hydraulic hand pump, pressure transducer, LPI battery operated digital readout unit, 2.4 m long datum bar, 3 pcs. 25 mm travel x 0.01 mm digital dial gauges with dial supports, 300 mm and 450 mm dia. loading plates
EKE 1200: Plate Loading Test Set With Digital Dial Gauges and Digital Readout Unit, 200 kN
EKE 1202: Piston Assembly , 200 kN Capacity, for Plate Load Bearing Test Sets
EKE 3800: Hydraulic Hand Pump, 700 bar
EKE 1204: Loading Plate Φ300 mm for EKE 1200
EKE 1205: Loading Plate Φ450 mm for EKE 1200
EKE 1220: Plate Loading Test Set , with Displacement Transducers and Data Logger, 200 kNKE 1200:
This test method is used to estimate the bearing capacity of a soil under field loading conditions for a specific loading plate and depth of embedment (ASTM D1194). It is also used for load test of soil and flexible pavement components for use in evaluation and design of airport and highway pavements.
EKE 1221: Plate Loading Test Set, with displacement transducers data kogger, 500kN
Light Weight Deflectometer
Light Weight Deflectometer
Ref. Standard : ASTM E2835-11

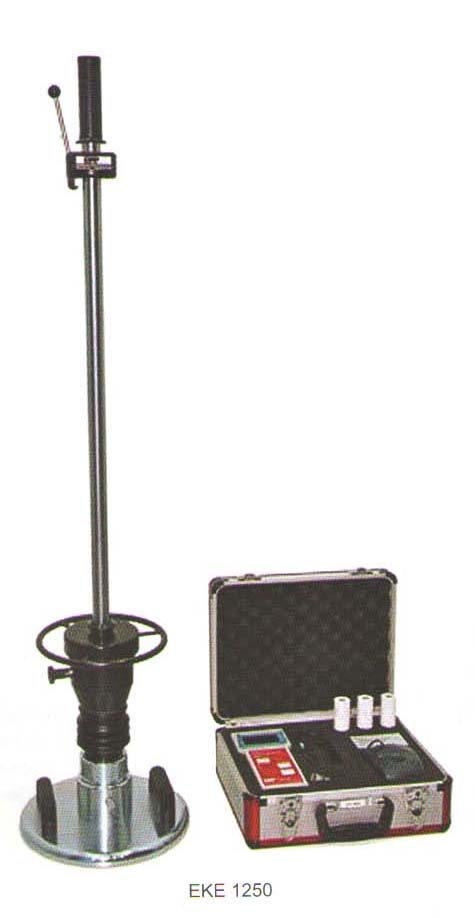

EKE 1250:
The light weight Deflectometer makes it possible to quickly determine, in an uncomplicated manner, the soil bearing capacity and compaction quality of soils, non – cohesive sub-bases , and pavement improvements. The dynamic plate load tester is described in the Engineering Code for Soil and Rock in Road Construction.
In this way testing inbuilt soil layers can be carried out very quickly and without requiring a vehicle , which means it is also suitable for sites that are difficult to access. The machine is used in many areas in road construction, Railway engineering and earth works for quality protection in canal construction and utility trenches , and in the examination of roadbeds and foundation fillings.
Due the easy handling and the immediately available measurement results. The Light Weight Defloctometer is especially suitable for in house self – monitoring.
The deflectometer is a very reliable device with a ergonomic design and special structure. It can be transported and operated easily by only one person. The transportation lock on the drop weight ensures safety.
The load plate is equipped with practical handgrips, and the bubble level helps with the exact alignment of the loading mechanism. Despite this precision, the Light Weight Deflectometer (LWD) is very robust and ling-lived. It is made using the very best of materials. Naturally , the measurement device is splash proof and can be used in all weather conditions.
