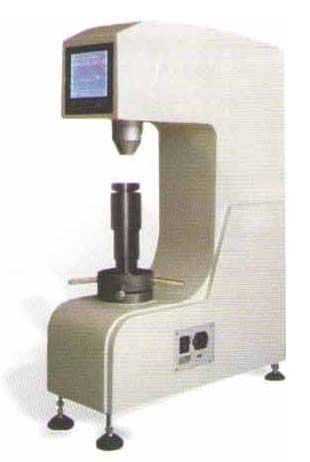

Automatic Rockwell Hardness Tester
Automatic Rockwell Hardness Tester
HER – 500:
Features :
HER – 500 can be used directly to measure Rockwell Hardness and plastic Rockwell Hardness, and it can change the value of Rockwell Hardness in to HB, HV, HLD, HK and ob value.
Provided with many features such as:
• High Measuring Precision
• Wide Measuring Range
• Automatic Test Force
• Changing According the Scales
• Automatic Main Test Force Loading / Unloading
• Measuring Results Digitally Display and Automatic Printing
• Communicating with External Computer and etc.
• The Tester is suitable for the Hardness Testing of Carbon Steel, Alloy Steel, Cast Iron, Non Ferrous Metal, Engineering Plastic and etc.
Specifications :
• Preload : 98.1 N (10kgf)
• Total test force : F 588, N4 (60kgf) , C980.7 N (100 kgf, C 1471N (150 kgf)
• Scales : HRA,HRB, HRC, HRD, HRE, HRF, CHRG, HRH, HRK, HRL, HRM, HRP
• Load cycle : 3~8s
• Load dwell duration : 2~50s
• Resolution : 0.1 HR
• Display : High definition backlight LCD
• Operation : Menu selectable, Membrane keypad
• Auxiliary functions : Upper/lower limits setting & alarming , Data statistics , Avg., Max., Min., S, R, Scale conversion, HV , HB, fDB ,Curved surface correcting automatically
• Date output : RS-232/USB data output to printer or PC
• Memory : Max. 500 items of test results stored automatically
• Testing Space : 200 mm in vertical, 165 mm horizontal
• Dimensions : 550 mm c 200 mm c 720 mm
• Power supply : Single Phase, AC, 110 V, 50 H~60 Hz, 4A
• Net weight : 100 kg
Standard Delivery:
- Host machine HER – 500 – 1
- Standard Hardness block for A scale – 1
- Standard Hardness block for B scale – 1
- Standard Hardness block for C scale - 1
- 1/16” Steel ball indenter – 1
- 120” cone diamond indenter – 1
- Mounting screws for indenter – 2
- Round panel anvil – 1
- “V” shape anvil - 1
- Power supply wire – 1
- Screwdriver for indenter mounting – 1
- Dust cover – 1
