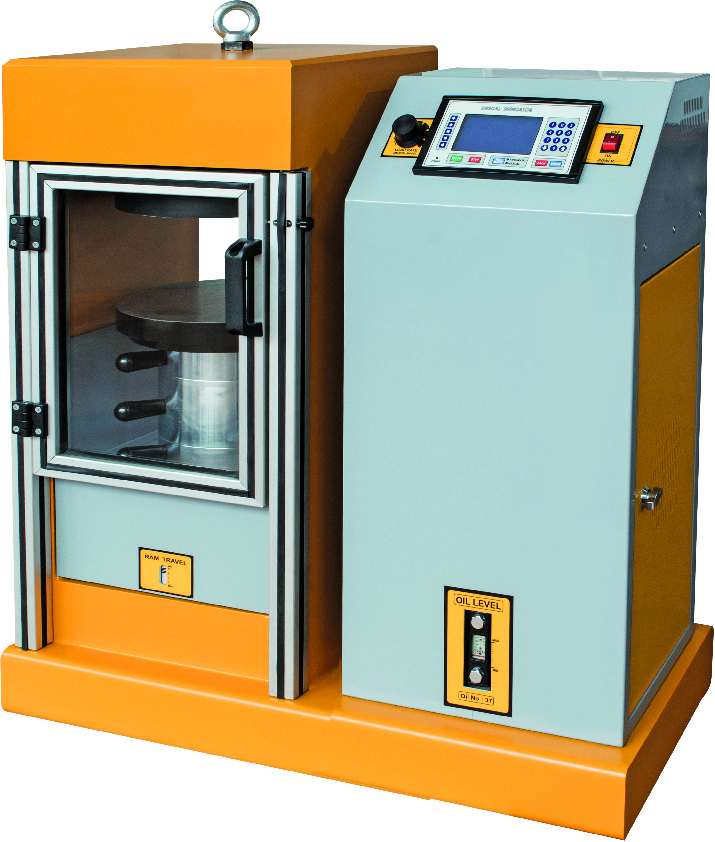

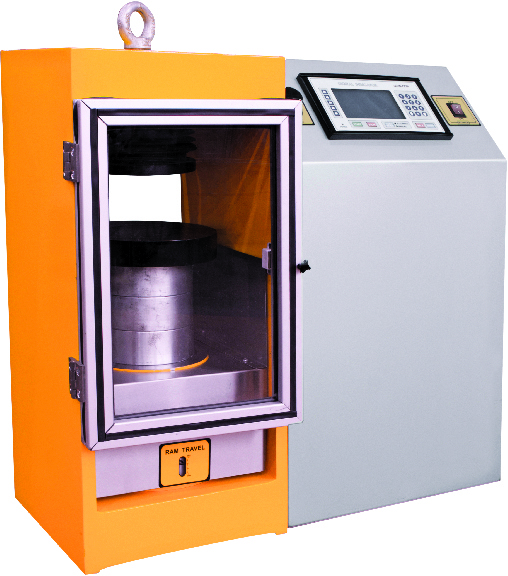

AUTOMATIC COMPRESSION TESTING MACHINE

• Used to test  the compression strength of concrete cubes/cylinders of different sizes.
• The rigid design provides stability and strength for a better using  experience.
• Equipped with an LCD unit that displays the data graphically of each test with the ability to save and recall the results of the tested specimens.
• The Data Acquisition Control provides real-time graphical  indication.
• Automatically determines the load rate in accordance with the  international standards upon sample type.
•  With the AUTO-STOP function, the test will automatically stop.
• Fully automatic mode or manual mode in which the user gets the  ability to adjust the load rate and period manually are available.
• The upper seating adjusts itself to apply homogeneous loading on  the sample.
• Supplied complete with spacer discs.

TECHNICAL SPECIFICATIONS:

• Fully Automatic.
• Graphical - LCD Data Acquisition Control System.
• atic Load Rate upon Sample Type.
• Stops Automatically, when Test is completed.
• Real time graph indication.
• Total Load and also Per Area are given.
• Test results can be transferred to computer to be printed or from the thermal printer.
• Different units are available (kN / kgf / lbf).
• Calibration done easily on 5 pts.
• Manual Control is available.
• If weight of sample entered, Unit Weight is determined.
• Rigid Frame. Upper and Lower Platens in accordance with international Specifications.
• Upper Seating for Homogeneous Loading.
• Distance Pieces included.
• Power Supply: 220 - 240 V / 50 - 60 Hz (110 V / 60 Hz is also available)
• Computer and printer are not included in the price

Testable Specimen Sizes:

• Cubes with side length of 100 mm, 150 mm, 200 mm or any other custom cube/prism size can be tested with the machine.
• Cylinders with diameter of 150 mm, 160 mm and height of 300 mm, 320 mm relatively or any other custom diameter and height can be tested with the machine.

Navigating Through the LCD Control Unit:

• Using the LCD control unit, to perform tests, to calibrate and to adjust the settings of the machine provides an easy and user friendly experience
