    ASPHALT MIXING

    Book Now Your Machine

    Asphalt Mixer –5ltr

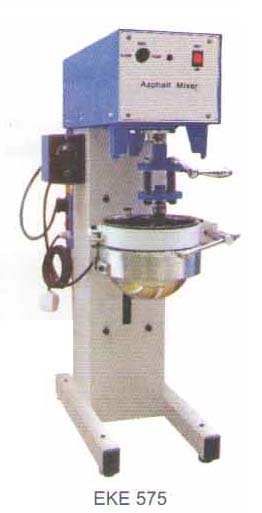

    Asphalt Mixer – 5 Liter
    Ref. Standard EN 12697-35

    EKE 575:

    This machine is used for laboratory mixing of   bituminous materials to prepare the specimens to be used for various asphalt tests. Its widely used in road construction laboratories , Testing laboratories , Research Institution. The machine mainly consists of a main frame , variable speed mixer, elevating system, heating pot, electrical control box. The variable speed mixer consists of electric motor, gear box and vertical curved blade. The evaluating systems consists of a motor, worm gear, up right column, guide bar and stopper block.

    In vertical type of mixer the pot can move up and down and in the horizontal type of mixer the elevating system with agitator assembly moves up and down

    Technical Specifications:
    •    Mixer Bowl Capacity : 5 Litter
    •    Mixing Capacity : 3.4 kg
    •    Temperature Range : Room Temp. to 140 + 5°C
    •    Speed of blade – Revolution : 0-80 rpm
    •    Speed of blade – Rotation : 0-180 rpm
    •    Heater Capacity : 1 kW
    •    Testing Environment : 10-40°C & <80% RH
    •    Power Supply : 220 V, 50 Hz, Single Phase AC Supply

    Asphalt Mixer –20ltr

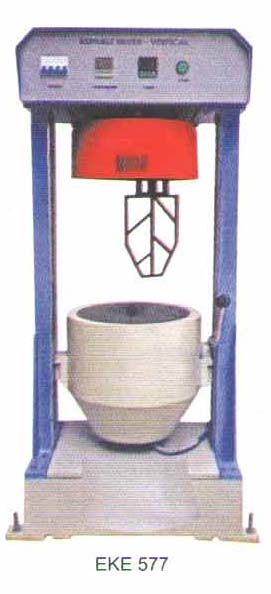

    Asphalt Mixer – 20 Liter
    Ref. Standard EN 12697-35

    EKE 577:

    This machine is used for laboratory mixing of   bituminous materials to prepare the specimens to be used for various asphalt tests. Its widely used in road construction laboratories , Testing laboratories , Research Institution. The machine mainly consists of a main frame , variable speed mixer, elevating system, heating pot, electrical control box. The variable speed mixer consists of electric motor, gear box and vertical curved blade. The evaluating systems consists of a motor, worm gear, up right column, guide bar and stopper block.

    In vertical type of mixer the pot can move up and down and in the horizontal type of mixer the elevating system with agitator assembly moves up and down

    Technical Specifications:
    •    Mixer Bowl Capacity : 20 Litter
    •    Mixing Capacity : 12-14 kg
    •    Temperature Range : Room Temp. to 200 + 0.5°C
    •    Speed of blade – Revolution : 42-48 rpm
    •    Speed of blade – Rotation : 70-75 rpm
    •    Heater Capacity : 3 kW
    •    Testing Environment : 10-40°C & <80% RH
    •    Power Supply : 415 V, 50 Hz, Three Phase AC Supply
    (Single Phase also available as optional)

    Asphalt Mixer –10ltr

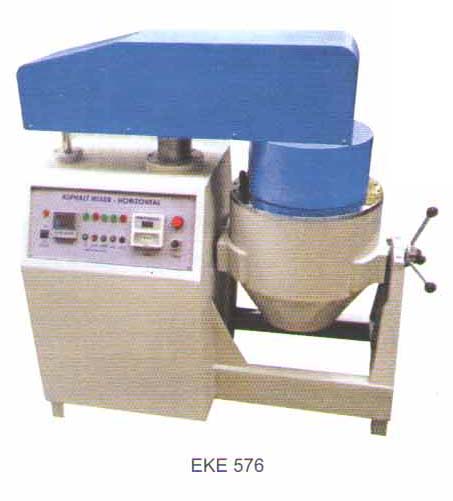

    Asphalt Mixer – 10 Liter
    Ref. Standard EN 12697-35

    EKE 576:

    This machine is used for laboratory mixing of   bituminous materials to prepare the specimens to be used for various asphalt tests. Its widely used in road construction laboratories , Testing laboratories , Research Institution. The machine mainly consists of a main frame , variable speed mixer, elevating system, heating pot, electrical control box. The variable speed mixer consists of electric motor, gear box and vertical curved blade. The evaluating systems consists of a motor, worm gear, up right column, guide bar and stopper block.

    In vertical type of mixer the pot can move up and down and in the horizontal type of mixer the elevating system with agitator assembly moves up and down

    Technical Specifications:
    •    Mixer Bowl Capacity : 10 Litter
    •    Mixing Capacity : 7-8 kg
    •    Temperature Range : Room Temp. to 200 + 0.5°C
    •    Speed of blade – Revolution : 42-48 rpm
    •    Speed of blade – Rotation : 70-75 rpm
    •    Heater Capacity : 1.5 kW
    •    Testing Environment : 10-40°C & <80% RH
    •    Power Supply : 415 V, 50 Hz, Three Phase AC Supply
    (Single Phase also available as optional)
