Asphalt Extraction Apparatus Automatic
Asphalt Extraction Apparatus Automatic

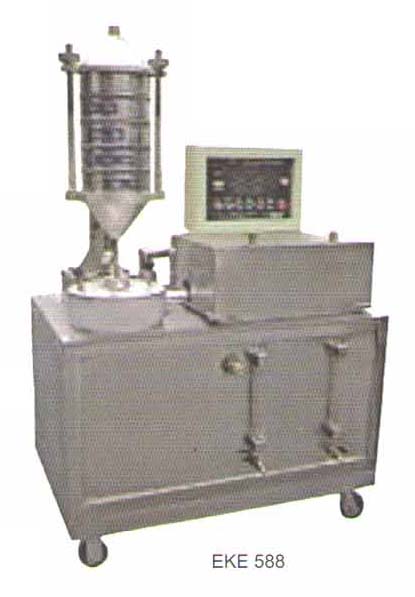

EKE 588:
The Asphalt Extraction Apparatus Automatic is used to perform reliable analysis on asphalt mixtures using noninflammable solvent as trichloroethylene and dichloromethane.
It works on high speed centrifugal separation, dissolvent recovery and purification technology for extracting the asphalt from bituminous mixtures.
The instrument has several safety features for its easy & trouble free operation such as phase sequence alarm , overheating protection, high or low level protection, high voltage protection, time etc. The centrifuge basket is made of aluminium alloy material supported by high performance thrust bearing for its long lasting performance. The dissolvent recovery and storage chamber is made of anti corrosion stainless steel. The extraction operation is completed in three steps i.e Bitumen extraction, dissolvent recovery chamber cleaning and regenerated combined liquid dissolvent recovery.
Suitable for operation on 415 V, 50 Hz, 4.5 kW, 3 Phase , AC Supply
Technical Specifications:
- Specimen Capacity : 000g to 1500g
- Extraction Accuracy : 0.1%
- Centrifugal Separator Rotation Speed : 5500 rpm , 11000 rpm
Trichloroethylene Recycle
Trichloroethylene Recycle
Ref. Standard ASTM D5616-04

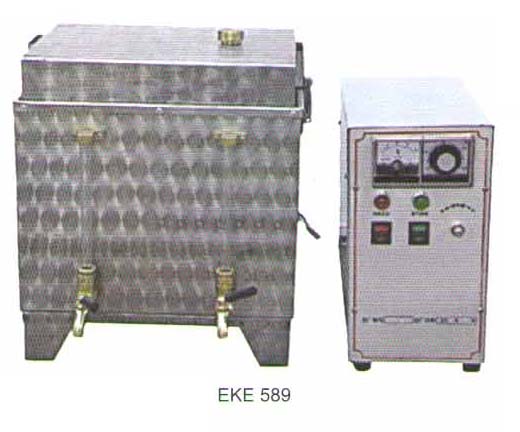

EKE 589:
The ever-increasing emphasis on safety, environment pollution and automatic handling of toxic materials has seen a need for the development and use of asphalt extraction systems. ENKAY offers instrument for asphalt extraction to recover the Trichloroethylene or dichloromethane from the bituminous mixtures.
This machine is used for recycling Trichloroethylene (C2HC13) used in asphalt extraction tests and the recovered solvent can be used 6-7 times and its found very cost effective as the price of Trichloroethylene is very high.
The instrument comprises of two chambers for solution evaporator and condensation and control cabinet for temperature control & cooling water cycling. The main unit is made of stainless steel for rust free operation for longer time.
Suitable for operation on 220 V, 50 Hz, 1 Phase , AC Supply
Technical Specifications:
• Combined solution : 1500 ml to 5500 ml
• Heating tube power : 800 W
• Temp. control range : 86 to 100°C
• Working Temp. Amb. to 40°C
• Relative Humidity : <85%
