ABRASION/ ABRASION FLEXURE

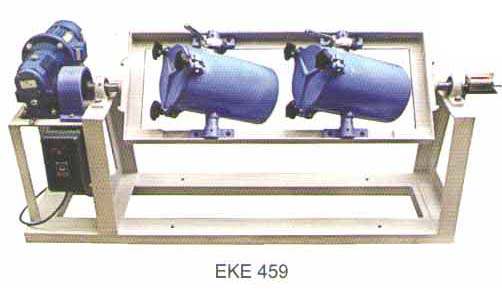

Deval Abrasion Testing Machine
(Also known as Deval Attrition Tester)
Ref. Standard IS: 2386 (Part IV)

EKE 459:

The Deval Abrasion Testing Machine EKE -457 is used to determine the aggregate abrasion value of coarse aggregates as described in IS:2386 (Part 4). The machine consists of two hollow cylinders, closed at one end and provided with tight fitting covers at the other end, mounted on a shaft at an angle of 30° to the axis of rotation. The shaft rotates 30-33 r.p.m through a reduction gearbox, coupled to a motor

Supplied complete with revolution counter but without abrasive change.

Suitable for operation on a 415 V, 3 Phase , 50 Hz . AC Supply

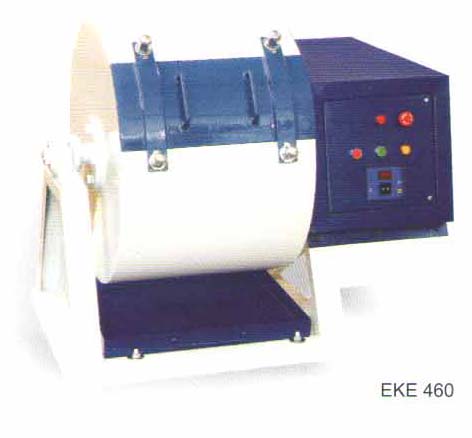

Los Angeles Abrasion Machine With Abrasive Charge
Ref. Standard  IS:10070

EKE 460:

The machine is for determining the resistance to wear of small size coarse aggregates and crushed rock. The machine consists of a hollow cylinder mounted on a sturdy frame on ball bearings. A detachable shelf which extends through out the inside length of the drum catches the abrasive charge and dose not allow in to fall on the cover. The drum is rotated at a speed of 30-33 rpm by an electric motor through a heavy duty reduction gear. Motor is suitable for operation on 220 Volt , 1 Phase , 50 Hz, AC Supply.

Supplied complete with a tray for collection of the material ,  without abrasive charge consisting of a set of 12 hardened steel balls of 48 mm dia.

Essential Accessories:
EKE 46001: Abrasive Charge, Consisting of a set of 12 hardened steel balls of 48 mm dia.
EKE 46002: Revolution Counter
EKE 46003: Sound Proof Cabinet

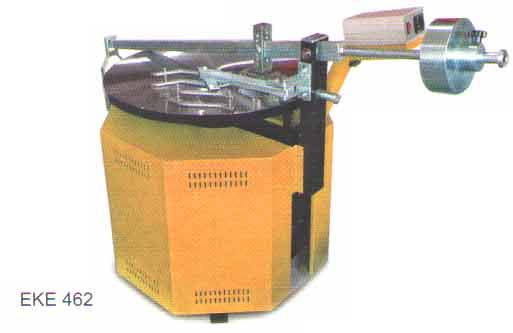

Dory Abrasion Tester

EKE 462:

•    Used to determine the abrasion – resistance of the aggregate particles
•    Supplied with a horizontal abrasion disc with a diameter of 750 mm
•    Automatic revolution selection for better and accurate results.
•    Equipped with sample holder, beam – loading device, and a pack of white corundum powder

Technical Specifications:
•    Horizontal Abrasion Disc Φ 750 mm diameter
•    Automatic Revolution Selection
•    Sample Holder – beam loading device & Weight
•    Power Supply 220-240 , 50 or 60 Hz is also available)

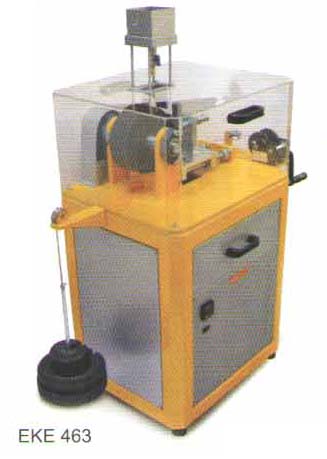

Abrasion Tester for Natural Stone And Concrete Tiles

EKE 463:

•    Used to determine the abrasion – resistance of the natural stones and tiles
•    Equipped with abrasion disc of 70 mm thickness
•    Designed with “ Automatic Revolution” selection feature for accurate and better results.
•    Supplied with pack of white corundum powder

Technical Specifications:
-    Testing machine for Natural Stones and Tiles
-    Abrasion Disc is 70 mm thick
-    Automatic Revolution Selection
-    Power Supply 220-240 , 50 or 60 Hz (110 V/ 60 Hz is also available)

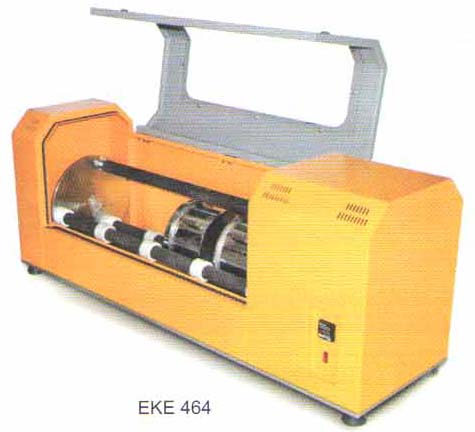

Micro – Devel Abrasion Tester

EKE 464:

•    Used to determine the Abrasion – Resistance of the aggregate particles
•    The machine is made of a rigid steel frame on which one of the following combinations can be mounted
•     4 cylinders (Φ 200 mm x 154 mm)
•     2 cylinders (Φ 400 mm x 154 mm)
•     2 cylinders (Φ 200 mm x 154 mm) and 1 cylinder (Φ 400 mm x 154 mm)
•    Transparent safe guard is fixed on the machine to increase the safety level and ensure fault-less operation
•    Equipped with automatic digital counter

Technical Specifications:
•    Rigid Steel Frame
•    Stainless Steel Drums Φ 200 mm x 154 mm (2ea)
•    Safety Guard
•    Transparent
•    Automatic Digital Counter
•    Abrasive Charges – Φ 10 mm (2kg)
•    Power Supply 220-240 , 50 or 60 Hz (110 V/ 60 Hz is also available)

Supplied with :
•    2 cylinders (Φ 24400 mm x 154 mm)
•    Abrasive Charges – Φ 10 mm (2kg)

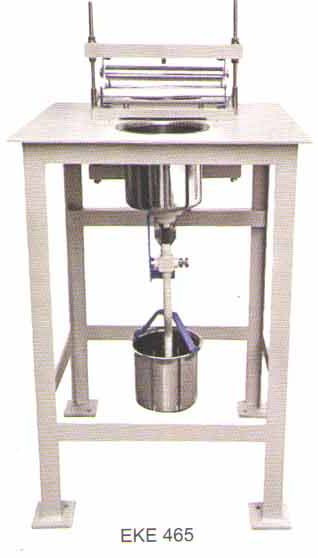

Tile Flexure Strength Testing Machine – Capacity 200 kg
Ref. Standard – IS:654, 1237

EKE 465:

For clay roofing tiles(Mangalore Pattern) and Cement Concrete Flooring Tiles. This is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots which automatically stops when the sample breaks. The load is applied at the rate of 450 to 550 N/minute (200 kg/Minute) and the accuracy of load indication ±2%  . The sample is mounted between rollers 40 mm dia. or 20 mm dia.

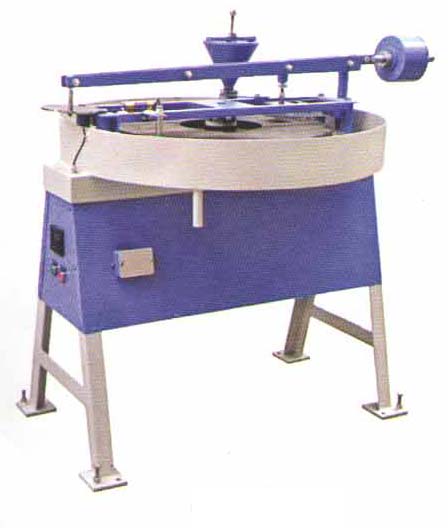

Tile Abrasion Testing Machine
Ref. Standard IS:1237, 1706

EKE 466:

The tile sample is pressed under a specified load against a grinding path, strewn evenly with abrasive powder, revolving at the rate of 30+/- 1 rpm. At the end of 100 revolutions of the disc. The second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc.
The wear of the tile is measured using thickness measuring device .The abrasion testing machine consists of a replaceable grinding path, fitted on to a disc rotating about its vertical axis. The rotating disc and the grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter – balanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder.
Supplied complete with automatic pre – set revolution counter and one 7.5 kg weight, but without abrasive  powder and thickness measuring device. Suitable for operation  on 415 V, 50 Hz, 3 Phase , AC Supply

Essential Extra:
EKE 46601: Thickness Measuring Device , with Dial Gauge, having 25 mm travel and 0.01 mm least count
ELE 46603:  Abrasive Powder
